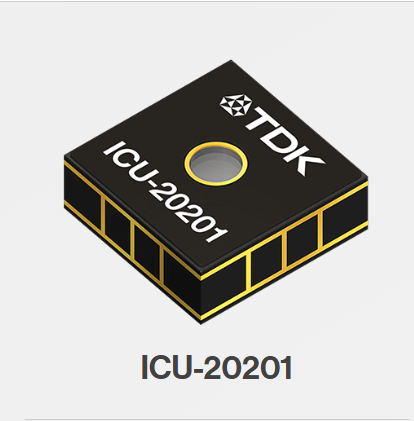

ICU-20201

Upload Product Image
ICU-20201
Part #
ICU-20201
Select Sensor Type
TDK SmartSonicTM ultrasonic time-of-flight
Features & Benefits text
  • Operating Range: 20cm to 5m
  • Customizable field of view up to 180°
  • Ideal for long range applications
  • Ultra-low power consumption extends battery life
  • Integrated high performance DSP runs ultrasonic firmware freeing up system micro-controller resources
  • High flexibility – large embedded program/data memory
  • Works in any lighting condition and can detect transparent surfaces
  • Available in modules as well
Sub Title
High-Performance Ultra-Compact Ultrasonic Time‑of‑Flight Sensor for Long-Range Applications
Size (L)
3.50mm
Size (W)
3.50mm
Size (D)
1.26mm
Range
0 – 5
Current Consumption
26.00
Interface
SPI 13 MHz
Operation
Pulse-Echo
Buy Now link
Shop Now
Short description

The ICU-20201 is a high-performance ultrasonic Time-of-Flight sensor that is ideal for measuring the range of objects between 20cm and 5m, and offers a customizable field-of-view of up to 180º. It has a sample rate of 150 samples per second at 1 meter, and 32 samples per second at 5 meters. It comes in a 3.5 Ã— 3.5 Ã— 1.26 mm LGA package, and includes an integrated DSP for signal processing.

The ICU-20201 extends battery life via its ultra-low power consumption (26µA – 300µA depending on the number of samples per second), and is highly flexible thanks to a large amount of embedded program and data memory. It is also available in a module.

Add Extra product specifications
datasheet
ds-000478_icu-20201-datasheet.pdf (1.24 MB)
